PRODUCT PARAMETERS
Description
Product Introduction

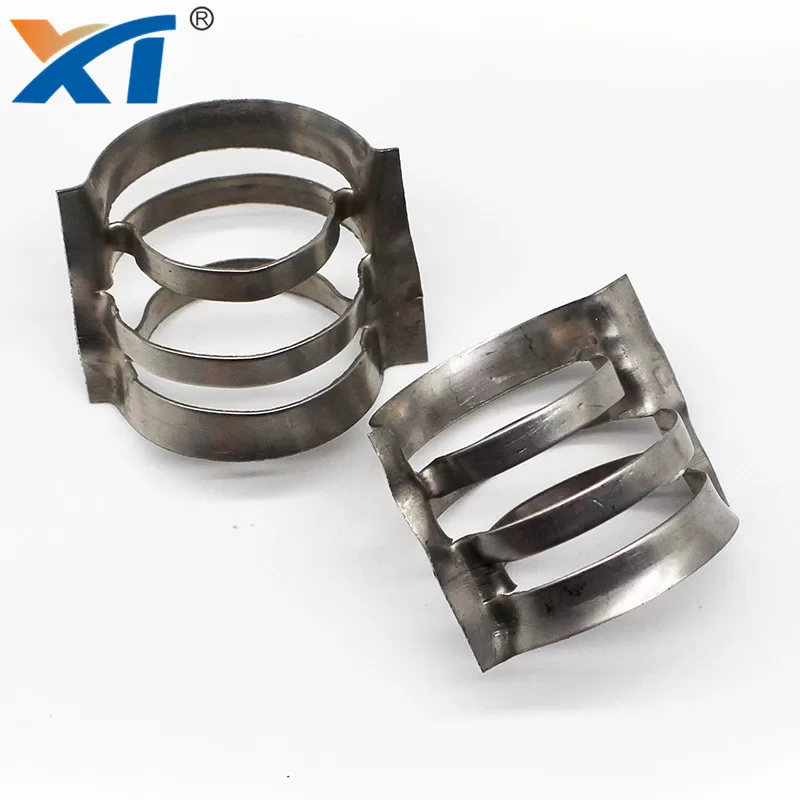

XINTAO Metal conjugate ring is a kind of filling material with metal as raw material, which is one of the most advanced and effective types of metal filling materials. Metal conjugate ring is a new type of ring and saddle shaped packing which makes up for its shortcomings. Compared with the metal rectangular saddle ring, it has higher efficiency and stronger characteristics.
Technical Parameter:
| Product | Metal Conjugate Ring | |||||
| Diameter (mm) | 16 | 25 | 38 | 50 | 76 | 89 |
| Thickness (mm) | 0.3 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 |
| Bulk density (kg/m3) | 345 | 214 | 193 | 182 | 142 | 145 |
| Number (PCS/m3) | 201000 | 51000 | 15000 | 6500 | 1830 | 1160 |
| Surface area (m2/m3) | 346 | 212 | 145 | 106 | 69 | 62 |
| Free Volume (%) | 95.5 | 96.2 | 96.7 | 97.5 | 97.4 | 97.1 |
Advantage
Improved efficiency due to lateral liquid diffusion and surface film renewal
Outstanding surface utilization in mass and heat transfer applications
Shorter packed bed heights
Maximum piece-to-piece contact with minimal nesting
High strength to weight ratio allows up to a 15 metre bed height
Consistent performance due to uniform randomness
Free flowing particle design facilitates installation and removal via uniform randomising
