PRODUCT PARAMETERS
Description
Product Introduction

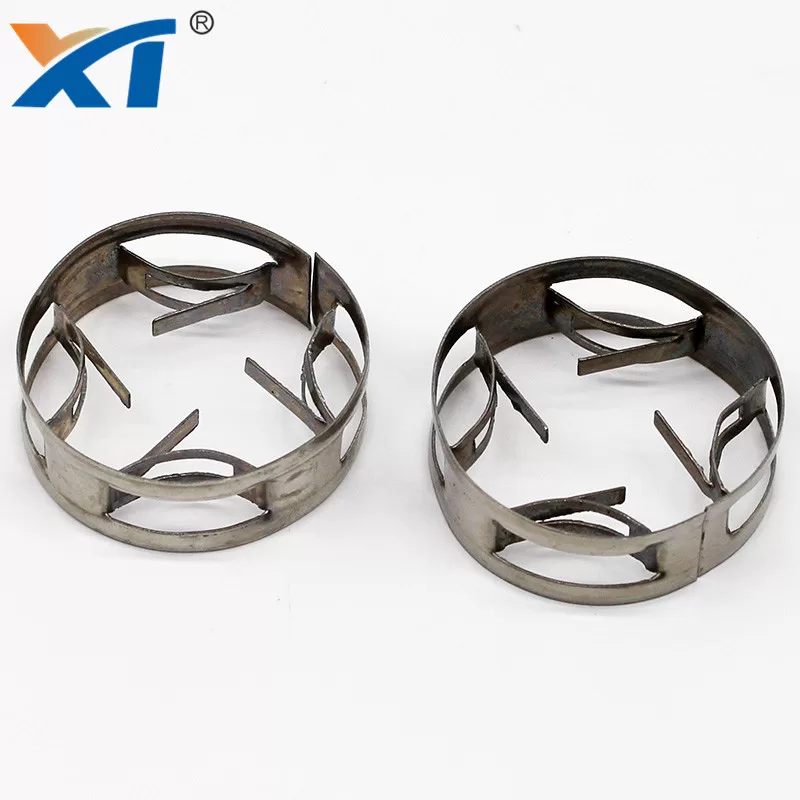

XINTAO Metal Super Mini Ring (SMR) is always thought as the shorter cascade mini ring, because Super Mini Ring has the similar shape of cascade mini ring without top turn-ups. It also can be called as Metal flat ring. XINTAO Metal Super Mini Ring’s flat ring bent arc reinforced angle characteristics make less fluid resistance, and enlarge liquid & gas contact on easily wet surfaces. XINTAO Metal Super Mini Ring (metal flat ring) has which has improved the packing of the hydrodynamics and mass transfer. Its performance is better than pall ring, as the axial mixing is small, the mass transfer effects may be increased by 20% or more. This kind of metal random packing can applied to gas-liquid mass transfer process.
Technical Parameter:
| Model | Metal Super Mini Ring | |||||
| Material | Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. | |||||
| Size(mm) | 16 | 25 | 38 | 50 | 75 | |
| Dimension | mm | 16×5.5×0.6 | 25×9×0.6 | 38×12.7×0.8 | 50×17×0.8 | 75×27×1.0 |
| Number | per m3 | 37800 | 155000 | 48000 | 21500 | 5800 |
| Bulk density | kg/m3 | 492 | 516 | 400 | 360 | 243 |
| Surface area | m2/m3 | 348 | 228 | 150 | 120 | 70 |
| Void space | % | 92.3 | 93.6 | 95 | 96.5 | 98.5 |
| Packing factor | m-1 | 335 | 280 | 175 | 156 | 90.2 |
| Typical Application | Absorption, scrubbing and stripping services | |||||
| Package | Jumbo bag, Carton box, wooden box | |||||
| Warranty |
a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 b) Offer lifetime consultation on problems occurred |
|||||
Advantage:
1. High loading & throughput / low pressure drop, good liquid / gas distribution and high mass transfer efficiency
2. Versatility, easily wet table, high resistance to fouling, high temperature.
3. Mechanical strength of metal packing, high temperature applications,
4. Mechanically robust, lesser probability of breakage, suitable for deeper beds.
