PRODUCT PARAMETERS
Description
Product Introduction

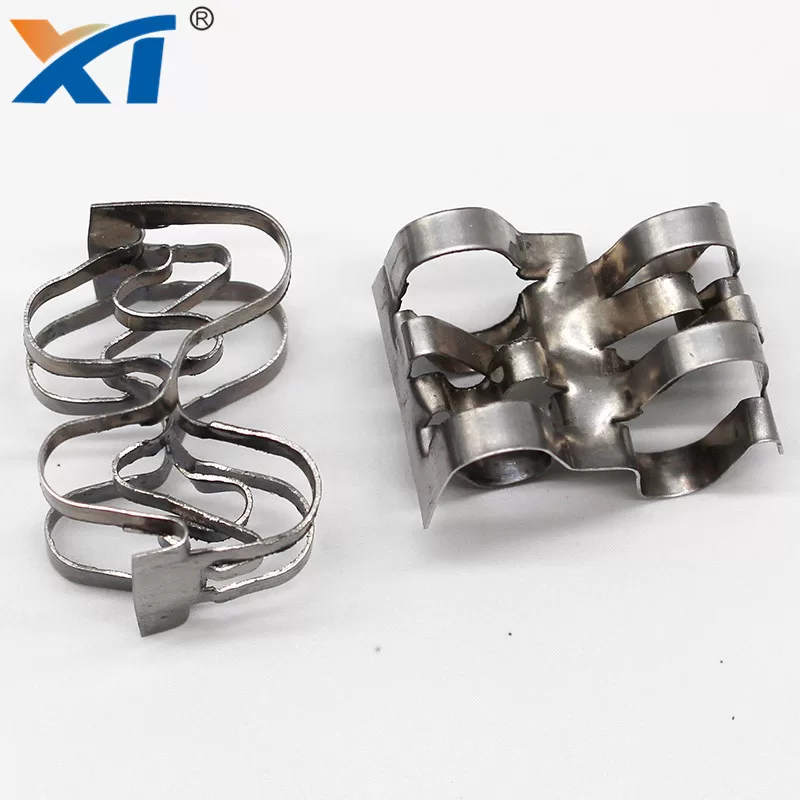

XINTAO Super Raschig Ring has a more than 30% greater load capacity, an almost 70% lower pressure drop and a mass transfer efficiency exceeding that of conventional metal packings by over 10%. The design of the Super Raschig Ring offers an optimal solution to industry’s demands for a modern heavy-duty packing.Raschig Super-Ring can be widely used in the packed tower of petrochemical, , fertilizer, environmental protection industries and so on. Especially suitable for vacuum distillation tower.
Technical Parameter:
| Model | Super Raschig Ring | |||||||
| Material | Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. | |||||||
| Size | mm | 15 | 20 | 25 | 30 | 38 | 50 | 70 |
| NO. per | m3 | 180000 | 145000 | 32000 | 32000 | 13100 | 9500 | 4300 |
| Surface | m2/m3 | 315 | 250 | 180 | 150 | 120 | 100 | 80 |
| Free Volume | % | 96 | 97 | 98 | 98 | 98 | 98 | 98 |
| Typical Application | Absorption, scrubbing and stripping services | |||||||
Advantage:
1. High loading & throughput / low pressure drop, good liquid / gas distribution and high mass transfer efficiency
2. Versatility, easily wet table, high resistance to fouling, high temperature.
3. Mechanical strength of metal packing, high temperature applications,
4. Mechanically robust, lesser probability of breakage, suitable for deeper beds.
