PRODUCT PARAMETERS
Description
Product Introduction

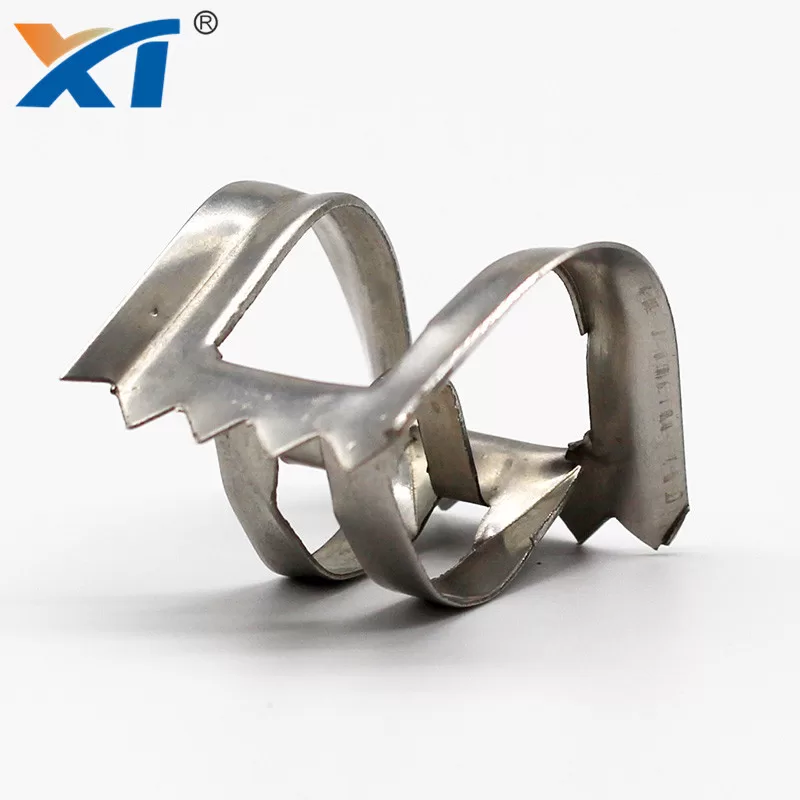

Metal Super Saddles are the equivalent to Intalox Metal Tower Packing with advantage of: 1)A versatile packing used in distillation, absorption and other operations. 2) Used in both deep vacuum and high pressure towers. 3) VODA metal saddle is high performance random packing successfully used in mass transfer towers both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop is crucial and also high pressure towers where capacity significantly exceeds conventional trays.
Technical Parameter:
| Size | Thickness | Bulk density | Number | Surface area | Free volume | Packing Factor |
| (mm ) | (mm ) | (kg/m3 ) | per m3 | (m2/m3 ) | (% ) | m-1 |
| 15 | 0.3 | 282 | 347000 | 305 | 96.5 | 167 |
| 25 | 0.3 | 222 | 135000 | 241 | 96.8 | 135 |
| 40 | 0.3 | 147 | 50200 | 161 | 97.1 | 79 |
| 50 | 0.4 | 133 | 15000 | 104 | 98.1 | 59 |
| 60 | 0.4 | 109 | 8400 | 85 | 98.2 | 50 |
| 70 | 0.5 | 114 | 4600 | 62 | 98.6 | 39 |
