Metal Perforated Plate Corrugated Packing

Metal Perforated Plate Corrugated Packing

PRODUCT PARAMETERS

Description
FAQs
Request A Quote

Description

Product Introduction

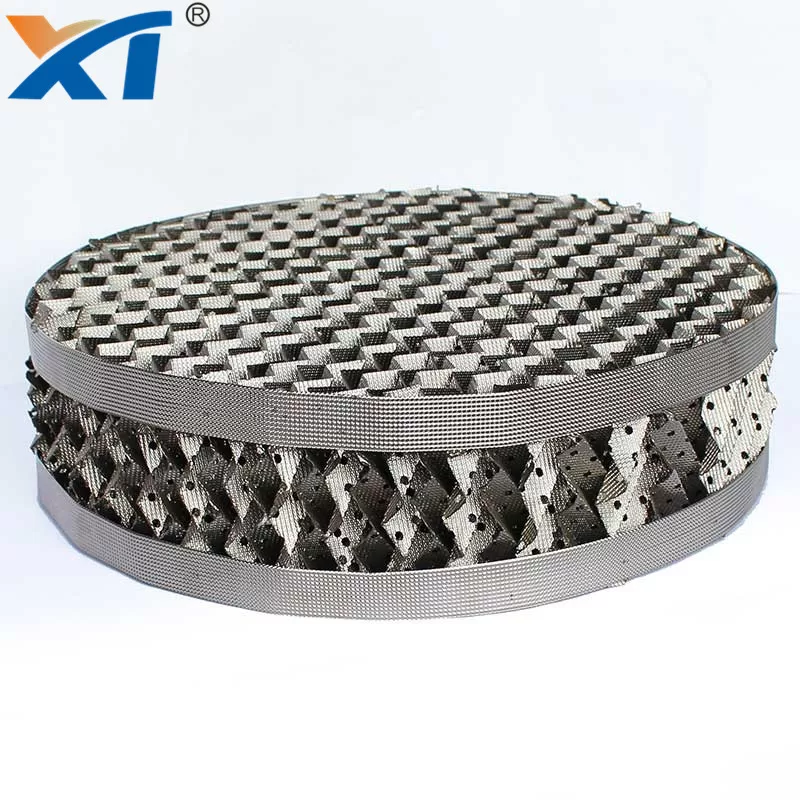

Metal structured packing typically consists of metallic wires and corrugated metallic sheets, which at uniform geometry arranged and neatly piled in the tower. It is widely used in the reactors in fine chemical industry, petrochemical industry, and fertilizer industry as mass transfer media and often used in difficult separation and the vacuum distillation of heat content, atmospheric distillation and absorption process.

Technical Parameter:

Model Perforated Plate Corrugated Packing
Material SS 304, 304L, 410, 316, 316L, etc.
Model 125Y 250Y 350Y 500Y 125X 250X 350X 500X
Specific surface (m2/m3) 125 250 350 500 125 250 350 500
Bulk density (kg/m3) 100 200 280 360 100 200 280 360
Void ratio (%) 98 97 94 92 98 97 94 92
Obl. angle 45° 45° 45° 45° 30° 30° 30° 30°
P (Pa/plate) 200 300 350 400 140 180 230 280
Theo. plate (piece/m) 1~1.2 2~2.5 3.5~4 4~4.5 0.8~0.9 1.6~2 2.3~2.8 2.8~3.2

Typical Application Absorption, scrubbing and stripping services

Package : Carton box;
M.O.Q: 1 CBM
Payment Terms: T/T; L/C; PayPal; West Union
Warranty: a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995
b) Offer lifetime consultation on problems occurred

Container 20GP 40GP 40HQ Normal order Minimum Order Sample order
Quantity 25 CBM 54 CBM 68 CBM <25 CBM 1 CBM < 5 pcs
Delivery Time 7 days 14 days 20 days 7 Days 3 days Stock
Comments: Customized making is allowed.

 Application

　Perforated plate corrugated packing with the wide range of applications.

　Diameter: 0.1-12m;Pressure: Vacuum to high pressure.

　Liquid lood: 0.2 to more than 300 m3/m2.h.

　System: Ethylbenzene/ styrene, Fatty acide, cyclohex anone/ cyclohexanol, caprolaction, etc, Absorption desorption.
